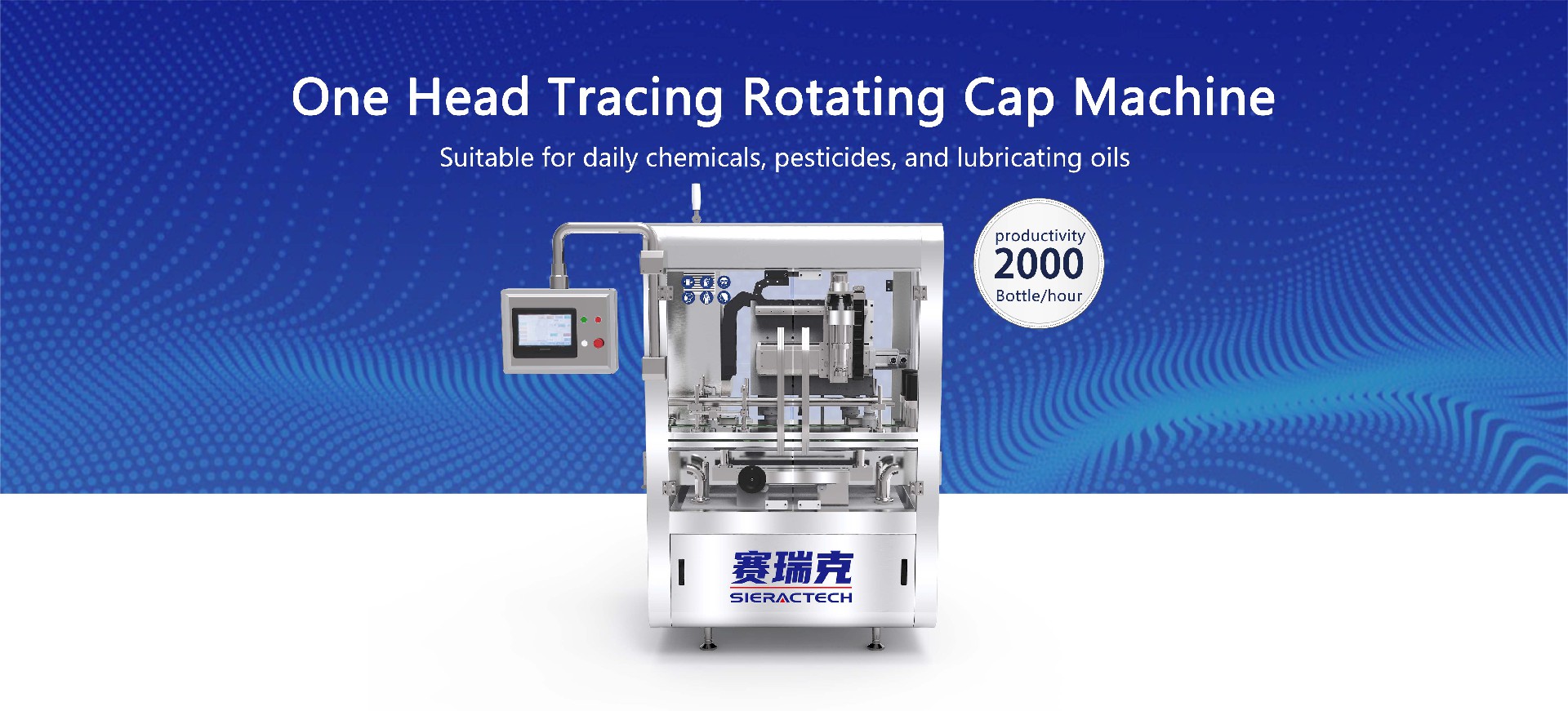

One Head Tracing Rotating Cap Machine
  • 组 64.jpg

    Rotate and rub cap
    multiple functions
  • 组 65.jpg

    Tracing rotating cap
    No pour or splash
  • 组 66.jpg

    Servo motor
    Stable and reliable
  • 组 67.jpg

    Up and down
    Easy adjustment
  • 组 68.jpg

    Intelligent monitor
    Run stably
可为您提供:设备智能监测 、健康诊断服务
产品参数
设备细节
Application

Application:Agrochemical,daily chemical,medical industry,and food industry and so on.

组 70.png

Round cap

组 71.png

Spray cap

组 72.png

Pump head cap

组 73.png

Duckbill cap

组 77.png

Round cap

组 76.png

Spray cap

组 75.png

Pump head cap

组 74.png

Duckbill cap

Equipment parameter
Model:

One head Tracing Rotating Cap Machine

Speed of packing:

2000 bottles/h

Material:304 stainless steelPower:≤4KW
Driving method:Servo transmission technologyGas comsumption:15L/min
Capping method:Inline following rotary coverNumber of capping heads:1 head
Applicable bottle caps:Round cap, spray cap, pump head cap, duckbill cap and so onPower supply:380V/50HZ
Application range:Daily chemical,agrochemical,medical industry,food industry.Size:2500x1700x2400mm(lengthxwidthxheight)
Screw cap torque:Servo adjustableWeight:800KG
Video

Advantages
  • 1

    Quick adjustment

    The cover rubbing and rotating mechanisms adopt a quick installation design, and the entire machine servo is adjusted with one click.

  • 2

    Production Monitoring

    It is equipped with intelligent production monitoring functions such as bottle inversion detection, bottle blockage detection, and monitoring of bottle cap not tightened.

  • 3

    Stable production

    It can intelligent detect the situation of cap, track the constant torque output of the rotating cap, and ensure that the bottle does not stop or splash.

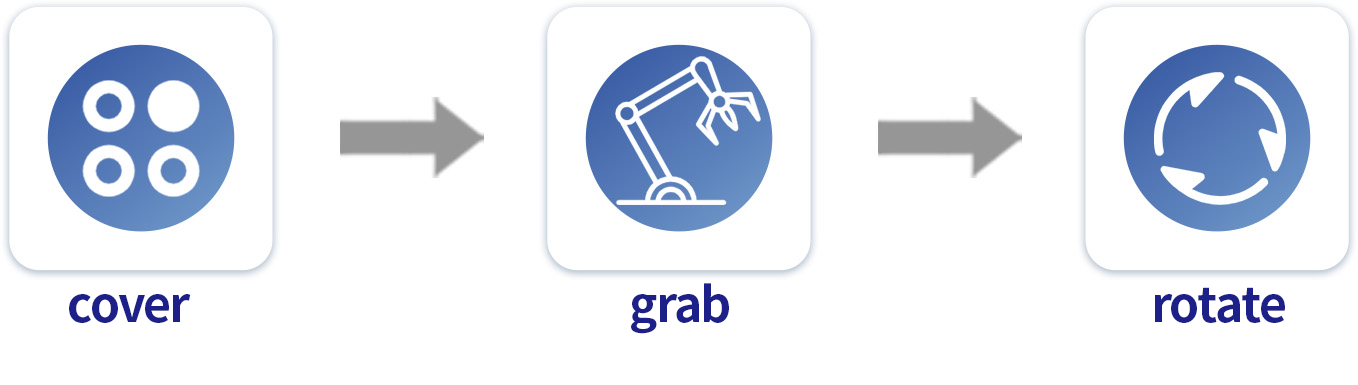

Process
