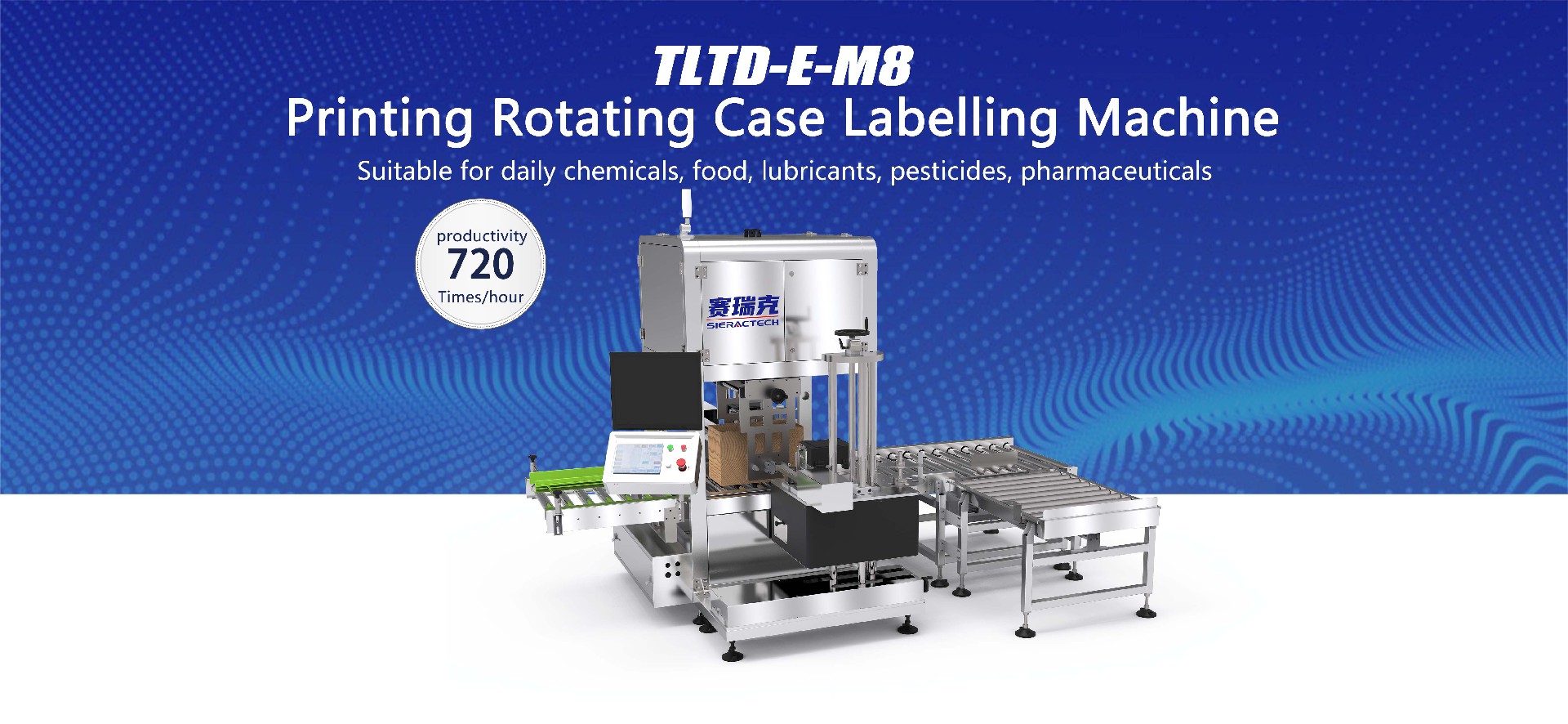

Printing Rotating Case Labelling Machine
  • 组 96.jpg

    Real time weighing
    One item, one code
  • 组 97.jpg

    Non contact labelling
    No hurt material
  • 组 98.jpg

    Intelligent Control
    Automatic production
  • 组 99.jpg

    Industrial Engine
    Stable and efficient
  • 组 100.jpg

    Printing content
    Flexible
可为您提供:设备智能监测 、健康诊断服务
产品参数
设备细节
Application

Application:Agrochemical,Medical chemical,food industry,medical industry and so on.

狻戬平酸碱平渗吸油 (1).png

Daily chemical

CURAD创可贴 (1).png

Medical

雀巢咖啡 (1).png

Food

图层 787 拷贝 3.png

Lubricating grease

榄菊 电热蚊香液 (1).png

Daily chemical

稳健医疗口罩 (1).png

Medical

图层 897.png

Food

图层 786 拷贝 2.png

Lubricating grease

Equipment parameter
Model:

TLTD-E-M4 Intelligent Printing Rotating Case Labelling Machine

Speed of packing:

720 times/h

Material:304 stainless steelPower:≤2KW
Driving method:servo motorGas comsumption:25L/min
Type of printing:Heat transfer printing/thermal sensitivityMedia Type:Coated paper, PET, synthetic paper, Grazin paper
Media size:76~180mm,0.076~0.305mm(width/thickness)Power supply:220V/50HZ
Application:Daily chemical,food industry,lubricating grease,agrochemical,medicalSize:1800x900x1500mm(lengthxwidthxheight)
Print range:330mm,168mm(length/width)Weight:400KG
Video

Advantages
  • 1

    Print and paste immediately

    Paste the required printing information for the current product label to the specified location.

  • 2

    Source tracing

    According to the characteristics of the "one item, one code" traceability system, a unique supervision code can be assigned to the product.

  • 3

    Pneumatic flap

    High speed pneumatic pressure tapping and labeling arm, suitable for different labeling positions, and other labeling components can also be selected according to needs.

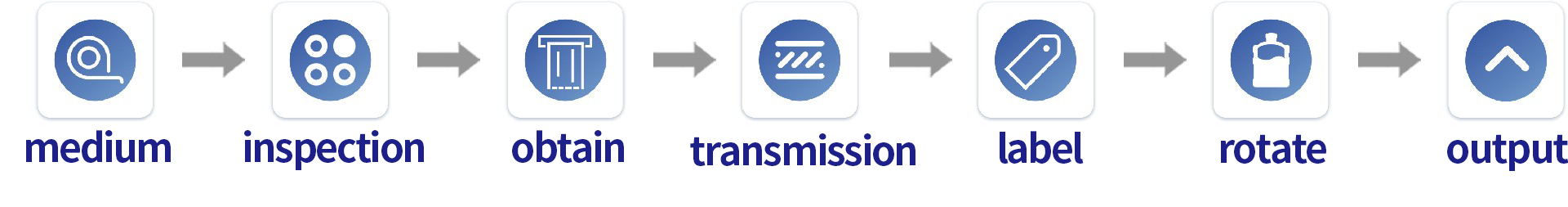

Process
