Robot feeding
Flexible productionMultiple stations
Strong expandabilityAutomatic feeding
High productionBox detection
Automatic rejectionClutch transmission
Safe and stable
设备细节
Application
Application:agrochemical,daily chemical,3C electronic,food industry,medical industry and so on
Hardware packing
3C electronic packing
Food packing
Agrochemical packing
Hardware packing
3C electronic packing
Food packing
Daily chemical packing
Equipment parameter

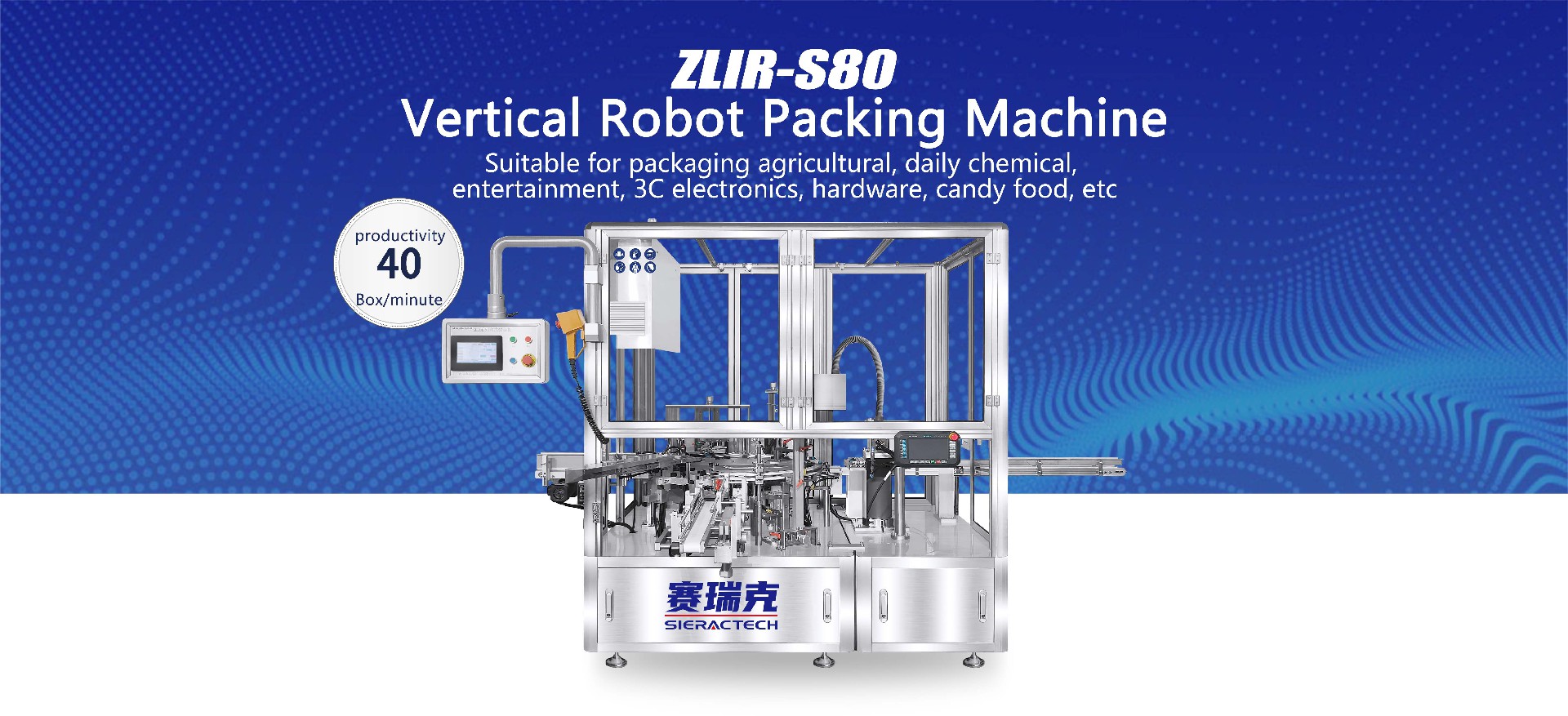

Model: | ZLIR-S80 Vertical Robot Packing Machine | Station: | 2 station |
Material: | 304 combination of stainless steel and carbon steel | Power: | 10.5KW |
Driving method: | Servo motor | Type of opening box: | Double suction head translational opening box |
Type of feeding: | Sierac robot feeding | Speed of packing: | 40 boxes/min |
Power: | 2KW | Gas comsumption: | 80L/min |
Vacuum suction: | -0.6MP | Power supply: | 220V/50HZ |
Size: | 1800x1600x2000mm(lengthxwidthxheight) | Weight: | 500KG |
Video
Advantages
1
Flexible production
Using a robot to automatically feed and adjust one button switching based on formula parameters.
2
Quick adjustment
Module design, overall lifting structure, and one click formula switching make adjustment more convenient.
3
Various functions
Multiple station design can add functions such as manual placement and coding according to requirements.
