Robot grasping
Flexible productionVisual positioning
Disorderly feedingModule unpacking
Automatic moldingMedule design
Flexible applicationAutomatic delivery
Reduce cost
设备细节
Application
Application:Agrochemical,daily chemical,and food industry.
Agrochemical packing
Daily chemical packing
Daily chemical packing
Food packing
Agrochemical packing
Daily chemical packing
Daily chemical packing
Food chemical packing
Equipment parameter

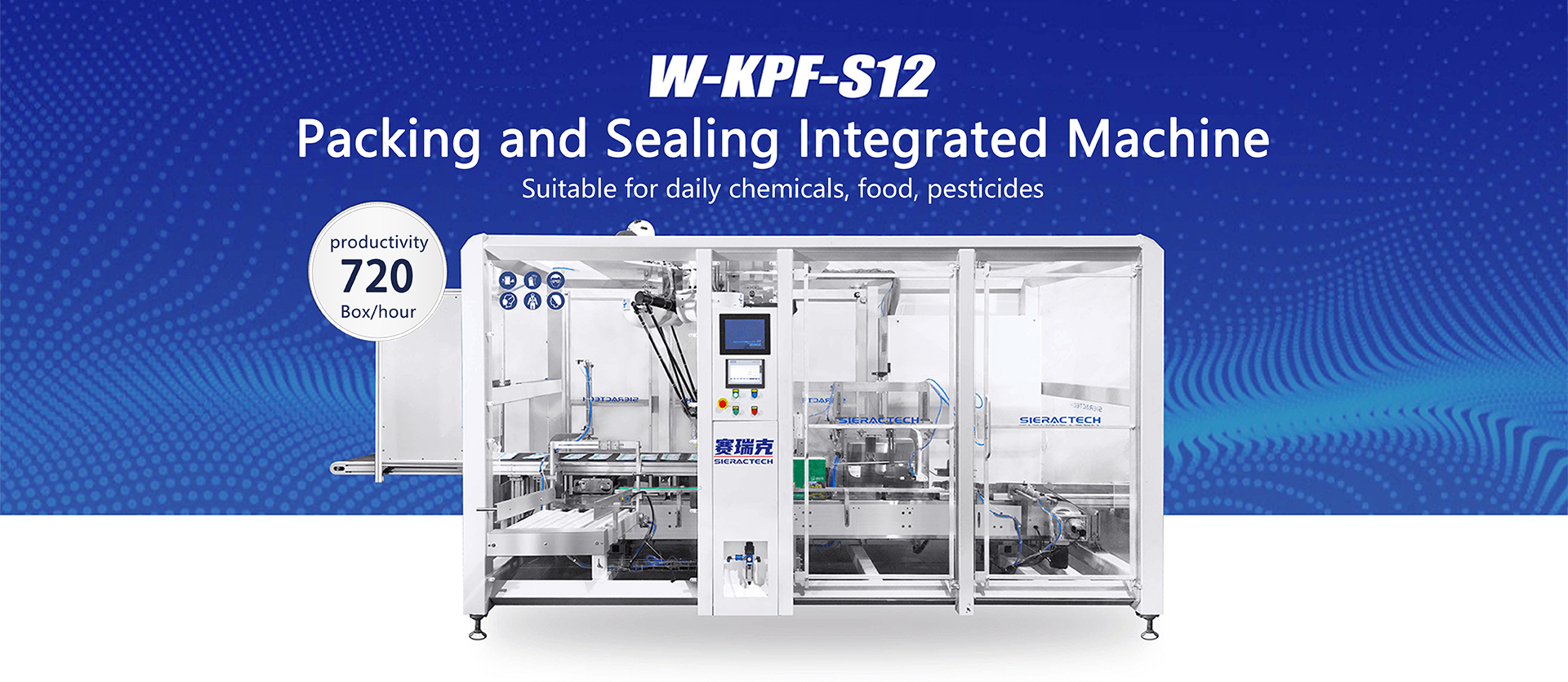

Model: | W-KPF-S12 Integrated Packing Machine | Speed: | 720boxes/h(take 200g as example) |
Material: | 304 stainless steel | Power: | ≤5KW |
Driving method: | Servo transmission technology+visual inspection+parallel three plus one axis robot | Gas comsumption: | 80L/min |
Staition: | 1 station | Control system: | Allen Bradley |
Packing method: | Grab type, top suction type | Power supply: | 220V/50HZ |
Height of workbench: | 840±50mm | Size: | 5300x2500x2400mm(lengthxwidthxheight) |
Application product: | The materials and packaging boxes for products weighing less than 5kg are self hooking bottom type | Weight: | 1500KG |
Video
Advantages
1
Flexible application
Adjustments can be made according to different product requirements to meet production needs.
2
Opening box stably
Adopting servo module with multi stroke opening action to ensure stable opening.
3
Easy to place
Using visual positioning and grasping, the previous process can achieve packing without the need for material handling.
